malykh.com notes: Webolog: Common/Combined Log Format analyzer [Java, 2001]

2024-03-01

Webolog: Common/Combined Log Format analyzer [Java, 2001]

In 2001, I had access to the server logs of a Tonigy website. I tried several ways (at least Moglan, Webalizer, Analog, ALA, and hypermart.net service) to analyze them, but I didn't like the results. So I decided to write my own web log analyzer.

Although I wrote Tonigy in the C language, I decided to use the Java language. Java had a much more advanced standard library than C. In C, even simple string manipulation was too verbose.

I was also writing in Perl at the time, but I was never a fan of that language. I didn't see Perl as a language for anything more complex than a few CGI files.

In 2001 I created an analyzer called Webolog, which I never published. But I used it a lot in my work. It was a command line tool for Java 1.1+. It takes logs in Common or Combined Log Format, extracts data, collects it, and generates a bunch of HTML files (with statistics).

I do not have logs that old, but I found screenshots from May 2001. Funny, they show MS IE as the browser.

Total visits:

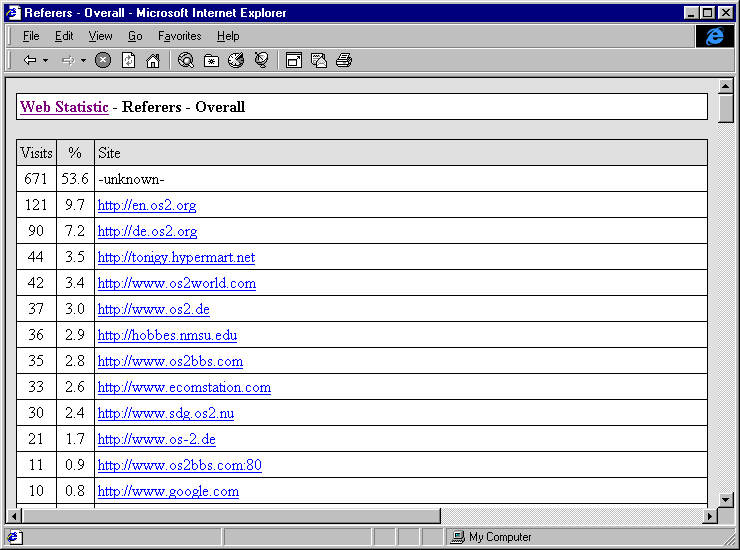

"Referers":

Search queries (from "referers"):

It is possible to configure query extraction. The search sites at that time:

===

web.altavista.com q

www.altavista.com q

www.lycos.com query

www.google.com q

www.google.fr q

www.google.de q

www.search.com qt

google.yahoo.com p

search.163.com key

en.os2.org query

===

Browsers used:

And OS used:

Agent data extraction is also configurable with RegEx.

===

; Opera

"Opera/(\S+) $.*Windows 9(?:5|8).*$\s+\[[a-z]{2}\]" "Opera" "Opera $1" "Windows 95/98"

"Opera/(\S+) $.*Windows NT 4\.0;.*$\s+\[[a-z]{2}\]" "Opera" "Opera $1" "Windows NT"

"Opera/(\S+) $.*Windows NT 5\.\d;.*$\s+\[[a-z]{2}\]" "Opera" "Opera $1" "Windows 2000"

"Opera/(\S+) $.*Linux.*$\s+\[[a-z]{2}\]" "Opera" "Opera $1" "Linux"

"Opera/(\S+) $.*OS/2.*$\s+\[[a-z]{2}\]" "Opera" "Opera $1" "OS/2"

"Mozilla/\S+ $.*Windows 9(?:5|8).*$ Opera (\S+)\s+\[[a-z]{2}\]" "Opera" "Opera $1" "Windows 95/98"

"Mozilla/\S+ $.*Windows 2000.*$ Opera (\S+)\s+\[[a-z]{2}\]" "Opera" "Opera $1" "Windows 2000"

"Mozilla/\S+ $.*Linux.*$ Opera (\S+)\s+\[[a-z]{2}\]" "Opera" "Opera $1" "Linux"

"Mozilla/\S+ $.*Windows 3\.10.*$ Opera (\S+)\s+\[[a-z]{2}\]" "Opera" "Opera $1" "Windows 3.1"

; Internet Explorer

"Mozilla/\S+ $.*MSIE (\S+);.*Windows 3\.1$" "Internet Explorer" "Internet Explorer $1" "Windows 3.1"

"Mozilla/\S+ $.*MSIE (\S+);.*Windows 9(?:5|8).*$" "Internet Explorer" "Internet Explorer $1" "Windows 95/98"

"Mozilla/\S+ $.*MSIE (\S+);.*Windows NT 5\.\d.*$" "Internet Explorer" "Internet Explorer $1" "Windows 2000"

"Mozilla/\S+ $.*MSIE (\S+);.*Windows NT(?:| 4.0).*$" "Internet Explorer" "Internet Explorer $1" "Windows NT"

"Mozilla/\S+ $.*MSIE (\S+);.*Mac_PowerPC.*$" "Internet Explorer" "Internet Explorer $1" "Mac/PowerPC"

; Netscape Navigator

"Mozilla $OS/2; (?:I|U); OS/2 Warp$" "Netscape Navigator" "Netscape Navigator" "OS/2"

"Mozilla/(\S+) $.*OS/2.*$" "Netscape Navigator" "Netscape Navigator $1" "OS/2"

"Mozilla/(\S+) $.*Linux.*$" "Netscape Navigator" "Netscape Navigator $1" "Linux"

"Mozilla/(\S+) $.*Macintosh.*68K$" "Netscape Navigator" "Netscape Navigator $1" "Mac/68K"

"Mozilla/(\S+) $.*Macintosh.*PPC$" "Netscape Navigator" "Netscape Navigator $1" "Mac/PowerPC"

"Mozilla/(\S+) \[[a-z]{2}\].* $.*OS/2.*$" "Netscape Navigator" "Netscape Navigator $1" "OS/2"

"Mozilla/(\S+) \[[a-z]{2}\].* $.*Win9(?:5|8).*$" "Netscape Navigator" "Netscape Navigator $1" "Windows 95/98"

"Mozilla/(\S+) \[[a-z]{2}\].* $.*WinNT.*$" "Netscape Navigator" "Netscape Navigator $1" "Windows NT"

"Mozilla/(\S+) \[[a-z]{2}\].* $.*Windows NT 5\.\d.*$" "Netscape Navigator" "Netscape Navigator $1" "Windows 2000"

"Mozilla/(\S+) \[[a-z]{2}\].* $.*Linux.*$" "Netscape Navigator" "Netscape Navigator $1" "Linux"

"Mozilla/(\S+) \[[a-z]{2}\].* $.*SunOS.*$" "Netscape Navigator" "Netscape Navigator $1" "SunOS"

"Mozilla/(\S+) \[[a-z]{2}\].* $.*AIX.*$" "Netscape Navigator" "Netscape Navigator $1" "AIX"

"Mozilla/(\S+) \[[a-z]{2}\].* $.*IRIX.*$" "Netscape Navigator" "Netscape Navigator $1" "IRIX"

...

===

Webolog collects data in a simple database. For simplicity I didn't use a RDBMS. Instead, the data is stored in a ZIP file containing several binary and XML files. Not very efficient, but it was enough.

Then Google Analytics became usable and even popular, so I stopped using Webolog.

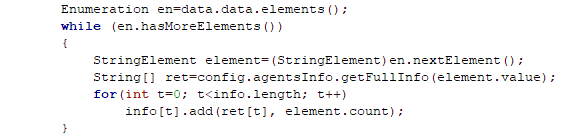

p.s. And when I looked at the source of Webolog, I found using the variable name "t" as expected:
